Tow bar 544 58-65 in the group Volvo / PV/Duett / Miscellaneous / Accessories / Accessories 544 at VP Autoparts AB (277482)

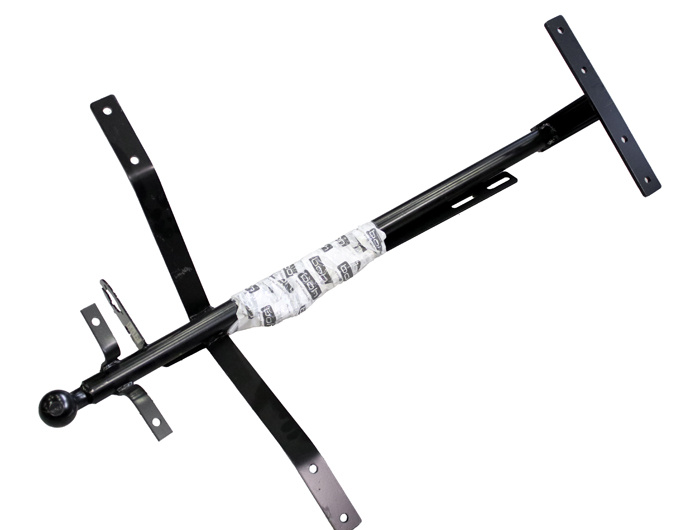

Tow bar 544 58-65

Tow bar 544 58-65

Article no: 277482
In stock
Ships within 1-3 business days.
2750 kr

  • Information
  • Max load: 1000 kilos.

    Fits 544 year models 1958 to 1965.
    Can also be used on earlier PV models (444's) if there is no bar/rube between the rear overriders.

    Set up the tow bar under the car with the front bracket under the cross member in front of the tank.Drill holes in the floor pan and cross member using the tow bar as fixture. For the front bracket (at the cross member), drill the holes for the spacer tubes from the trunk inside and up to 18 mm. Position the supporting counter brackets inside the trunk (2 pc) and inside the bumper (1 pc). Install the bolts and spacer tubes.

    NOTE! Carefully remove all undercoating and sound deadening sheets where brackets installs. The tow bar must only be installed with bolts.

    Wiring should be made before inspection (where the DMV require inspection).
    Oversize item: Oversize item, special handling required
    Unit: Pc
