Relay headlamp 1800/140/164/200 -1993 in the group Volvo / 240/260 / Electrical components / Switches / Relay engine bay 240 1988-93 at VP Autoparts AB (1307991)

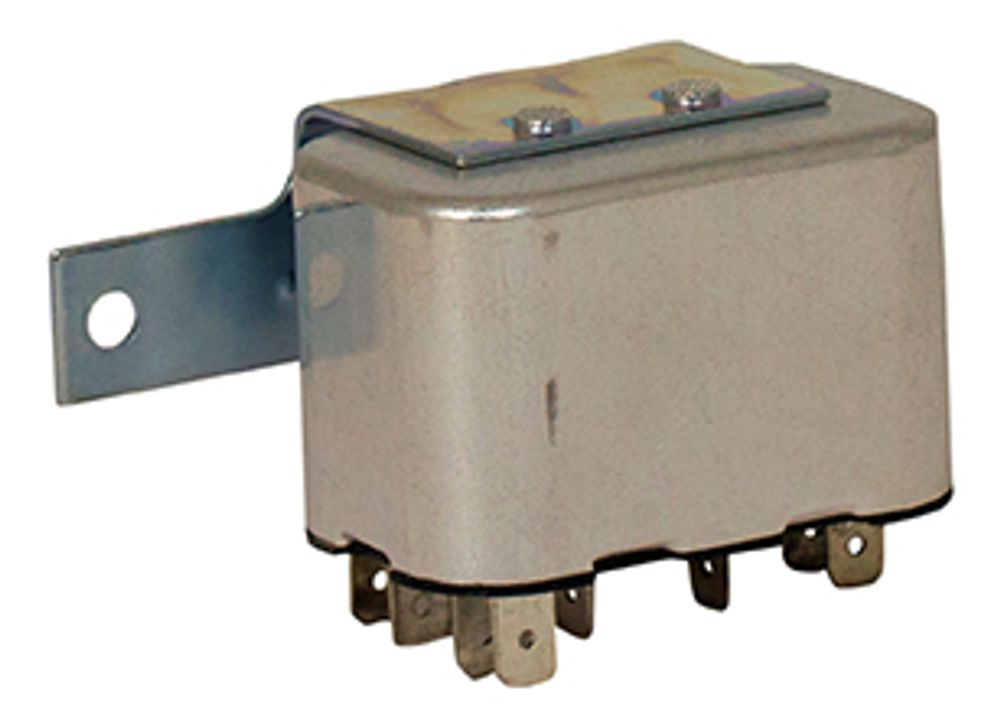

Relay headlamp 1800/140/164/200 -1993
Relay headlamp 1800/140/164/200 -1993

Relay headlamp 1800/140/164/200 -1993

Article no: 1307991
Not in stock
This item is not available at the moment. If you click on \\"Notify me\\", you will get a notification when the item is back in stock.

NB! The price is preliminary and may change when the item is ready for delivery.
1395 kr
  • Information

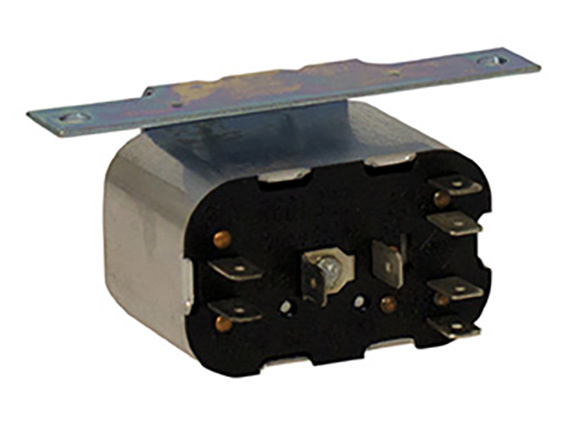

  • Wire connections
    56a = High beam
    56b = Low beam
    56 = High / Low switch on the dash board
    31b = Headlight flasher switch
    15 = Power from the battery

    To replace 679337 Overdrive Relay
    Wire connections:
    15 and 56 = Power from the battery
    56a = Overdrive and Overdrive light
    31b = Overdrive Column Switch

    This part replaces part no 688537, 688357, 688355, 679337.
    Unit: Pc
